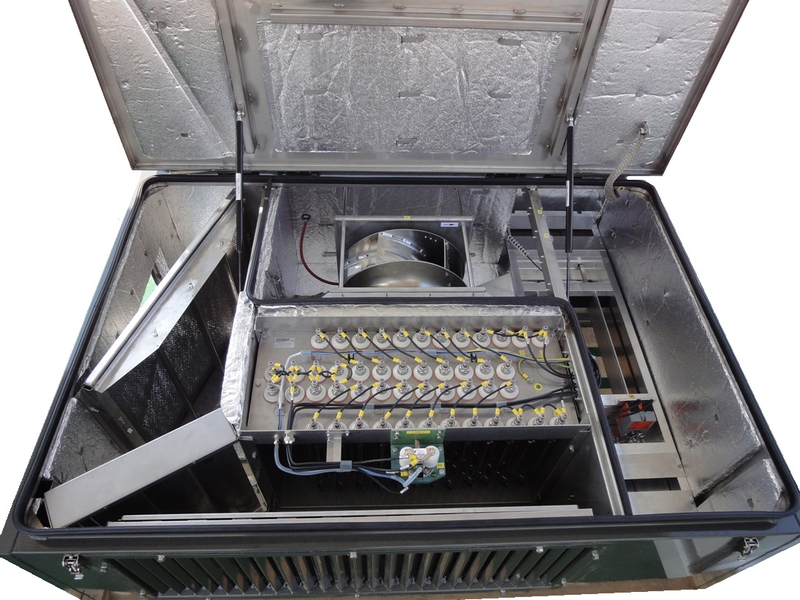

Air-conditioning unit KTV-2 type

Download area

  • Automatic regulation of thermal comfort, continuous power control
  • Operational modes: passenger compartment ventilation / heating - intake air switching
  • Air filtration
  • Own diagnostics of faults with memory
  • Robust stainless construction with heat insulation
  • Double heat protection
  • In compliance with railway operation standards









BASIC INFORMATION

PARAMETERS

Rated power supply voltage of control section

24 V DC (16,8 ÷ 30 V DC)

Rated power supply voltage of fan

3 x 400 V AC / 50 Hz

Rated power supply voltage of heating block

1 000 V DC (700 V DC ÷ 1 250 V DC)

Rated power of heating block

25 kW / 1 150 V DC

Operating temperature

-30 to +40 °C

Outlet air volume at full ventilation

2 090 m3/h

Noise level

Max 67 dB (A)

Internal protection

IP54

Dimensions

1 710 x 1 400 x 540 mm

Weight

250 kg



APPLIED MODIFICATIONS

DESIGN: CATALOG NUMBER:

KTV-2

46-03-20-00-00



REFERENCES

  • Inekon group, a.s.
  • Salzburger Lokalbahnen
