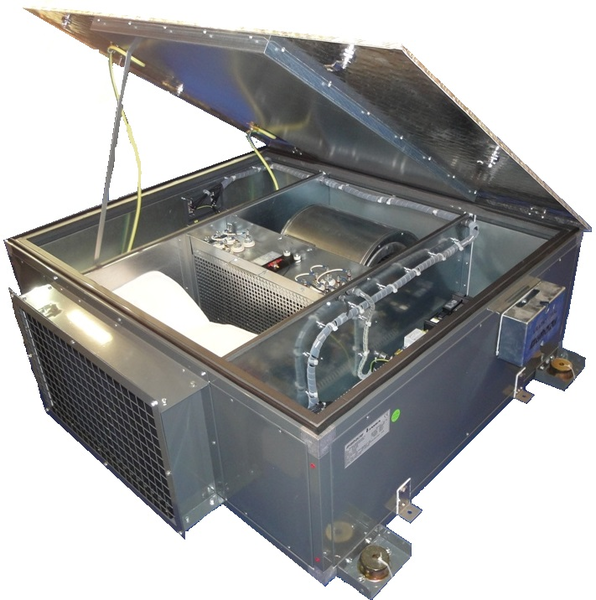

Air-conditioning unit KTV-1 type

Download area

  • Automatic regulation of thermal comfort, continuous power control
  • Operational modes: passenger compartment ventilation / heating
  • Air filtration
  • Control with CANopen protocol
  • Fault diagnostics
  • Sprung aluminum construction with heat-insulating boards
  • Well-proven in demanding  operation
  • In compliance with railway operation standards











BASIC INFORMATION

COMMUNICATION

CAN Physical layer

1 x ISO 11898-2

CAN Protocol

CANopen

PARAMETERS

Rated power supply voltage of control section

24 V DC (16,8 ÷ 30 V DC)

Rated power supply voltage of fan

3 x 400 V AC / 50 Hz

Rated power supply voltage of heating block

600 V DC (400 V DC ÷ 750 V DC)

Rated power of heating block

6 kW

Filtration class of filter

F5

Operating temperature

-30 to +40°C

Outlet air volume at full ventilation

1 800 m3/h

Noise level

max. 62 dB (A)

Internal protection rest / running

IP54/IP52

Dimensions

1 596 x 1 359 x 495 mm

Weight

175 kg


APPLIED MODIFICATIONS
DESIGN: CATALOG NUMBER:

KTV-1-15T

46-01-20-00-00



REFERENCES

  • ŠKODA TRANSPORTATION, a.s.
  • Prague Public Transit Company PLC
