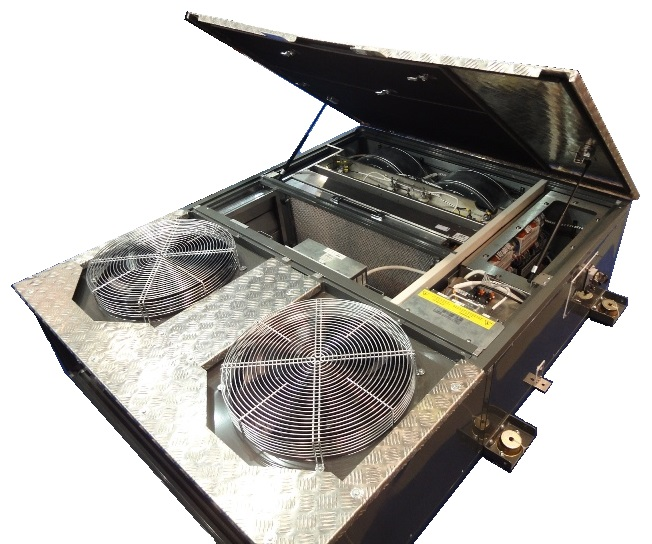

Air-conditioning unit HVAC KLMT 15002 type

Download area

  • Automatic regulation of thermal comfort, continuous power control
  • Operational modes: passenger compartment ventilation / cooling / heating
  • Air filtration
  • Control with CANopen protocol, diagnostics via Ethernet with memory of faults
  • Sprung aluminum construction with heat-insulating boards
  • Compressor power supply through built-in converter directly from overhead line









BASIC INFORMATION

COMMUNICATION

CAN Physical layer

1 x ISO 11898-2

CAN Protocol

CANopen

Ethernet



PARAMETERS

Rated power supply voltage of control section

24 V DC (16,8 ÷ 30 V DC)

Rated power supply voltage of fan

3 x 400 V AC / 50 Hz

Rated power supply voltage of heating block

600 V DC (400 V DC ÷ 720 V DC)

Rated power of heating block

6 kW

Rated cooling power

16,7 kW

Coolant

R134a

Filtration class of filter

G3

Operating temperature

-30 to +40 °C

Outlet air volume at full ventilation

2 300 m3/h

Noise level

max. 62 dB (A)

Internal protection

IP54

Dimensions

1 750 x 1 596 x 491 mm

Weight

398 kg



APPLIED MODIFICATIONS
DESIGN: CATALOG NUMBER:

KLMT-15-002

47-01-20-00-00



REFERENCES

  • ŠKODA TRANSPORTATION, a.s.
  • Prague Public Transit Company PLC
